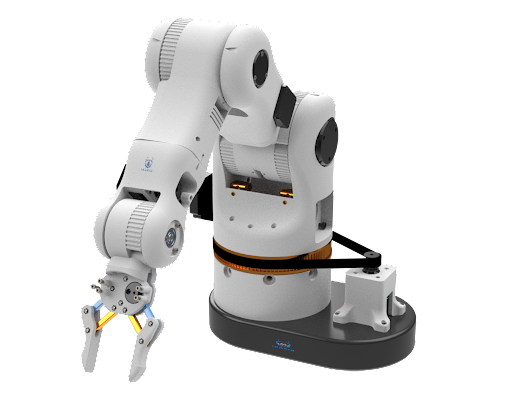

Industrial 6-Axis Robotic Arm

Ixorio 6-Axis Robotic arm, can be programmed to do an infinite number of repetitive tasks in a variety of factory environments

  • Economical in comparison to existing Robots
  • Improved safety
  • Improved efficiency and productivity
  • Enhanced precision
  • Offers outstanding flexibility and reliability
  • Fast, Reliable and Accurate
  • Compact, high-performance 6-Axis robot
  • Works in confined spaces for smaller shop floors

Specifications of Axismus 3

  • Weight : 18kg
  • Payload : 3kg
  • Reach : 590mm
  • Power Consumption : 100W Typical Application
  • Joint Range : ±360°
  • Joint Speed : J1-J4 180°/s
                          J5-J6 200°/s
  • Tool Speed : 2m/s
  • Repeatability : ±0.02mm
  • Degree Of Freedom : 6
  • END I/O Port : Digital Input：3，Digital Output：3，Analog Input:2
  • Control Box I/O Port : Digital Input:16, Digital Output:16, Analog Input:2, Analog Output:2
  • I/O Source : 24V 2A
  • Communication : TCP/IP and MODBUS
  • Programming : Graphical Programming, Remote Call Interface
  • IP Classification : IP54
  • Collaborative Operation : 10 Advanced Security Configuration Functions
  • Main Material : Aluminum Alloy
  • Working Temperature : 0-50℃
  • Power Input : 200-240V AC 50-60Hz
  • Cable : Cable To Connect The Control Box: 5m, Cable To Connect Teach Pendant: 5m

Specifications of Axismus 5

  • Weight : 25kg
  • Payload : 5kg
  • Reach : 800mm
  • Power Consumption : 180W Typical Application
  • Joint Range : ±360°
  • Joint Speed : J1-J4 180°/s
                           J5-J6 200°/s
  • Tool Speed : 2m/s
  • Repeatability : ±0.02mm
  • Degree Of Freedom : 6
  • END I/O Port : Digital Input：3，Digital Output：3，Analog Input:2
  • Control Box I/O Port : Digital Input:16, Digital Output:16, Analog Input:2, Analog Output:2
  • I/O Source : 24V 2A
  • Communication : TCP/IP and MODBUS
  • Programming : Graphical Programming, Remote Call Interface
  • IP Classification : IP54
  • Collaborative Operation : 10 Advanced Security Configuration Functions
  • Main Material : Aluminum Alloy
  • Working Temperature : 0-50℃
  • Power Input : 200-240V AC 50-60Hz
  • Cable : Cable To Connect The Control Box: 5m, Cable To Connect Teach Pendant: 5m
