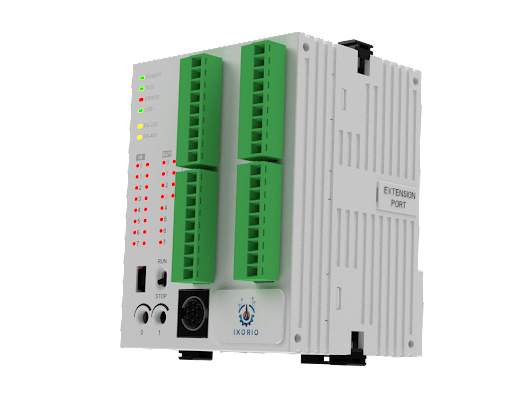

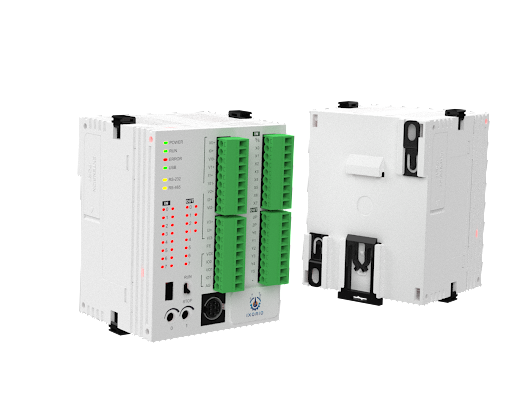

Programmable Controller Logic (PLC)

Ixorio PLC with sensors overcome manufacturing challenges with automation and hyper connectivity platforms and solutions. Ixorio PLC equipments are based on the Arduino technology designed for professional use, monitoring, control and automation.

  • Economical and Affordable
  • Ruggedised and Adaptable
  • Automated
  • Secured and Robust
  • Better Flexibility and Control

PLC Features

58 I/Os ANALOG/DIGITAL PLUS
36 inputs
22 outputs
Communications
RTC, µSD, Ethernet, USB, Full/Half duplex, RS485, RS232, I2C, Modbus
Wi-Fi & Bluetooth LE (ESP32)
Inputs, Outputs, Communications and other technical specifications
Inputs (Arduino Mega included) – 36 Inputs:
(16x) Analog Inputs (0-10Vdc, 10bit) / Digital Inputs (5-24Vdc) configurable by software.
(20x) Isolated Digital Inputs (5-24Vdc)
(6x) Interrupt Inputs (5-24Vdc). “Can work like Digital Input (5-24Vdc)

  • (1x) WiFi & Bluetooth LE (based on ESP32)
  • (1x) Ethernet port.
  • (1x) USB port (type B).
  • (1x) I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
  • (1x) RS-232 port.
  • (1x) HALF/FULL Duplex RS-485 port.
  • (1x) SPI external port (Using MOSI, MISO, SS pins of Arduino)
  • TCP IP / Modbus TCP. / Modbus RTU
  • Web Server capacity (just through Ethernet)
  • Industrial Protocols
  • 4x) Isolated Digital Outputs (5-24Vdc) / (8 of which) PWM configurable by software.
    (8 of which) Analog Outputs (0-10Vdc)
    Other technical specifications
    RTC (Real Time Clock. NOTE: I2C port used
  • µSD Socket (using SPI port, chip select D53 pin).
  • 100x75x115mm
  • DIN Rail mounting.
  • Max consum.: 1.2A
  • Flash Memory: 256kB (8kB for bootloader)
  • SRAM: 8kB
  • EEPROM: 4kB
  • Clock Speed: 16MHz

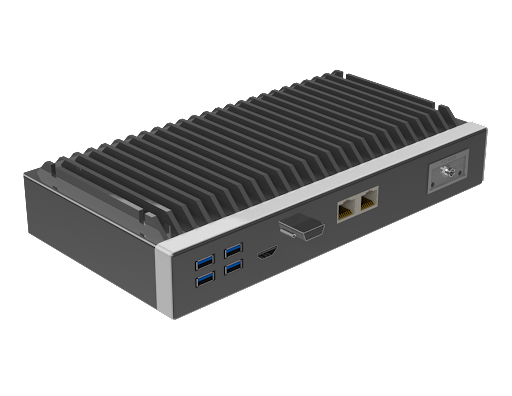

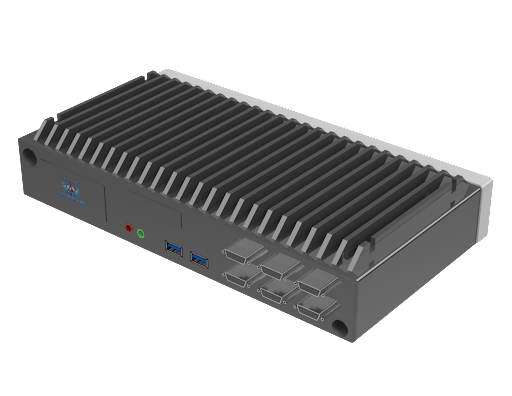

Edge Computer

Ixorio Edge Computers are smart, rugged edge computers to automate factory floor and supply chain processes through mobile robots, robotic arms and machine-to-machine communication closer to the source, rather than sending data to a cloud for analysis and response.

  • High Processing Speed
  • Secure data and operating system
  • Uninterrupted Power Supply
  • Multi process - Work with applications in real time
  • Power, flexibility and features of the Linux Operating System
  • Multiple connectivity with multiple options

FEATURES

  • Industrial Computer With 7th Gen Intel® Core™ Processor And Q170 PCH
  • LGA 1151 socket for 6th/7th Gen. Intel® Core™ i7/i5/i3 or
  • Pentium® / Celeron® Desktop Processor
  • Intel® Q170 chipset
  • 2x DDR4 1866/2133MHz SODIMM. Max. up to 32GB
  • Intel® HD Graphics 530 / 630
  • Triple independent display supported by 1x DVI-I,
  • 1x DisplayPort, 1x HDMI (Optional)
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 2x internal 2.5″ SATA HDD bay with RAID 0, 1, 5, 10 support,
  • 2x mSATA (shared by 2x Mini PCIe), 1x CFast
  • 2x full-size Mini PCIe (shared by 2x mSATA) for communication or
  • expansion modules, 2x external SIM socket
  • 4x RS-232/422/485 (w/ 2x internal),
  • 6x USB 3.0, 2x USB 2.0 (internal)
  • 8x DI + 8x DO with isolation
  • 9 to 50VDC wide range power input supporting AT/ATX mode
  • -25°C to 60°C extended operating temperature

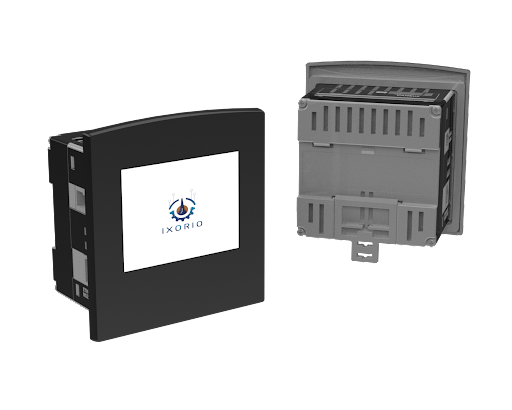

Human Machine Interface (HMI)

Ixorio HMI panels for the PLCs and Edge Controllers  allows the operators to manage with software controls, enabling easy and adaptable functionality.

  • Secure and Easy
  • Real time feedback
  • Automated Processes
  • Better functionality
  • Multitouch
  • High Resolution
  • Resistant
  • Panel PC encasing a 7” Capacitive Touch.
  • From 12 to 24Vdc
  • 10x GPIOs Opto Isolated (5-24Vdc) configurable.
  • 1x RS485-RS232*
  • 1x Serial TTL
  • 1x I2C
  • 1x SPI
  • UPS included
  • Touch Screen for industrial environment using Raspbian or Ubuntu from Linux.
  • Optional CPU
  • Quad-Core ARM Cortex – A72 1.5GHz
  • GPU
  • Broadcom VideoCore VI,
  • OpenGL ES 3.0, MPEG-2 and VC-1(license) 1080p30 H.265 (4kp60 decode),
  • H264 (1080p60 decode, 1080p30 encode)
  • USB
  • (2) x 2.0 (one of them is used for the touch screen)
  • (2) x 3.0
  • Storage
  • SD / MMC / SDIO slot
  • Network Com
  • Gigabit Ethernet – Serial TTL
  • Wireless Com
  • Wireless LAN / 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless
  • 10x GPIOs
  • Configurable by Hardware
  • OS
  • Linux Raspbian/Ubuntu
  • GPIO Voltage
  • 5-24Vdc
